HEL BMW F87 M2 & M2 Competition Stainless Steel Front & Rear Braided Brake Lines

Enhance the braking performance of your BMW F87 M2 or M2 Competition with HEL Performance stainless steel braided brake lines. Designed to eliminate the ‘spongy’ feel associated with OEM rubber hoses, these high-performance lines deliver sharper, more consistent pedal feedback—essential during fast road driving or track use.

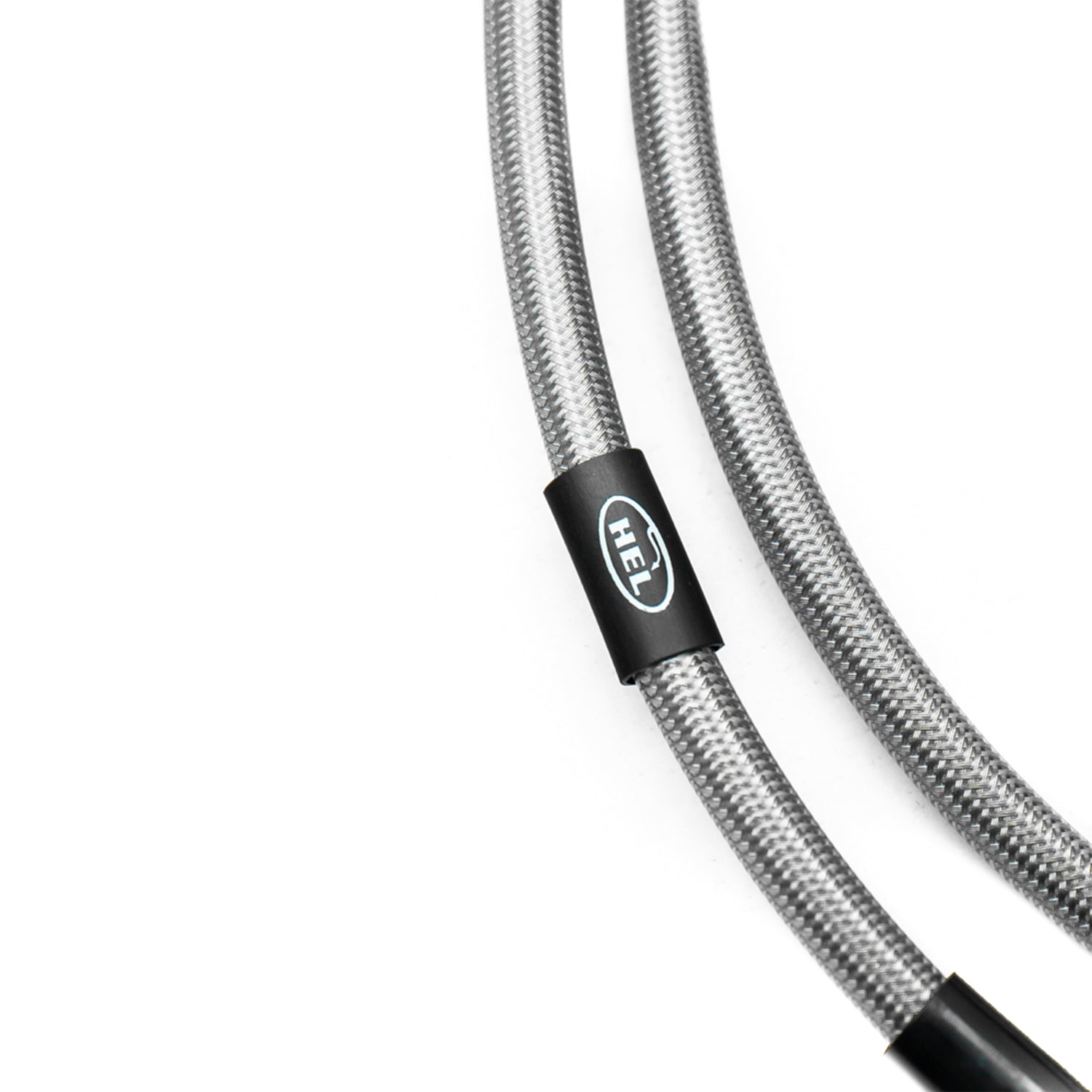

Each brake line is manufactured in the UK using a PTFE inner hose, encased in a tough stainless steel braid with a protective PVC cover. The lines are finished with corrosion-resistant stainless steel (303/304) fittings, ensuring long-lasting durability and exceptional resistance to heat and pressure.

Key Features:

• Designed for BMW F87 M2 & M2 Competition
• Improves brake feel and consistency under pressure
• High-temperature and corrosion-resistant materials
• Backed by the HEL Lifetime Warranty

Technical Specifications:

• Line inner material: PTFE
• Line outer material: Stainless steel (303/304) with PVC cover
• Fittings material: Stainless steel (303/304)
• Temperature range: -70°C to 260°C (-94°F to 500°F)
• Inside diameter: 3.5mm (0.138")
• Outside diameter: 7.5mm (0.295")
• Maximum working pressure: 290 Bar (4206 PSI)
• Burst pressure: 870 Bar (12618 PSI)
• Minimum bend radius: 38mm (1.496")

What’s in the Box?

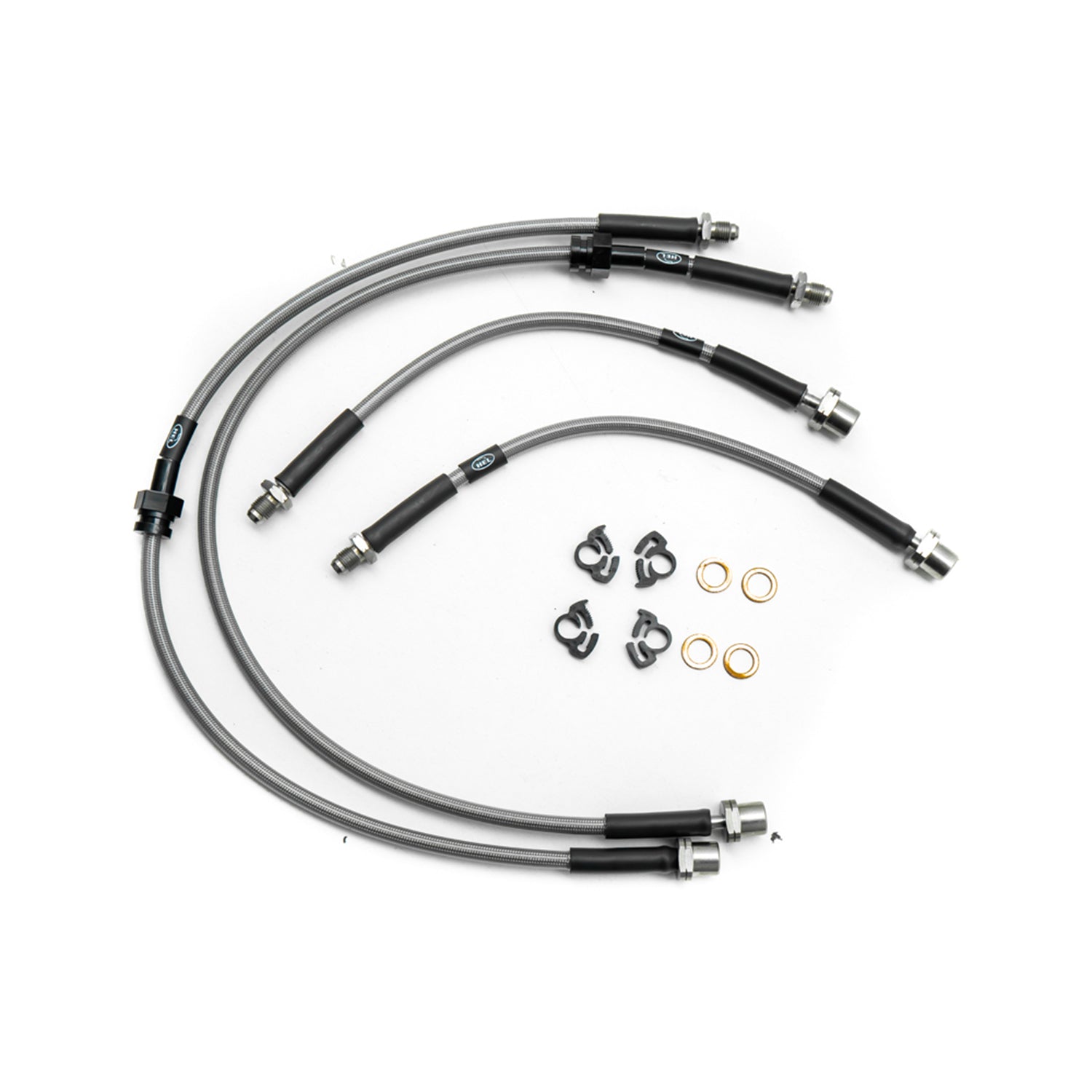

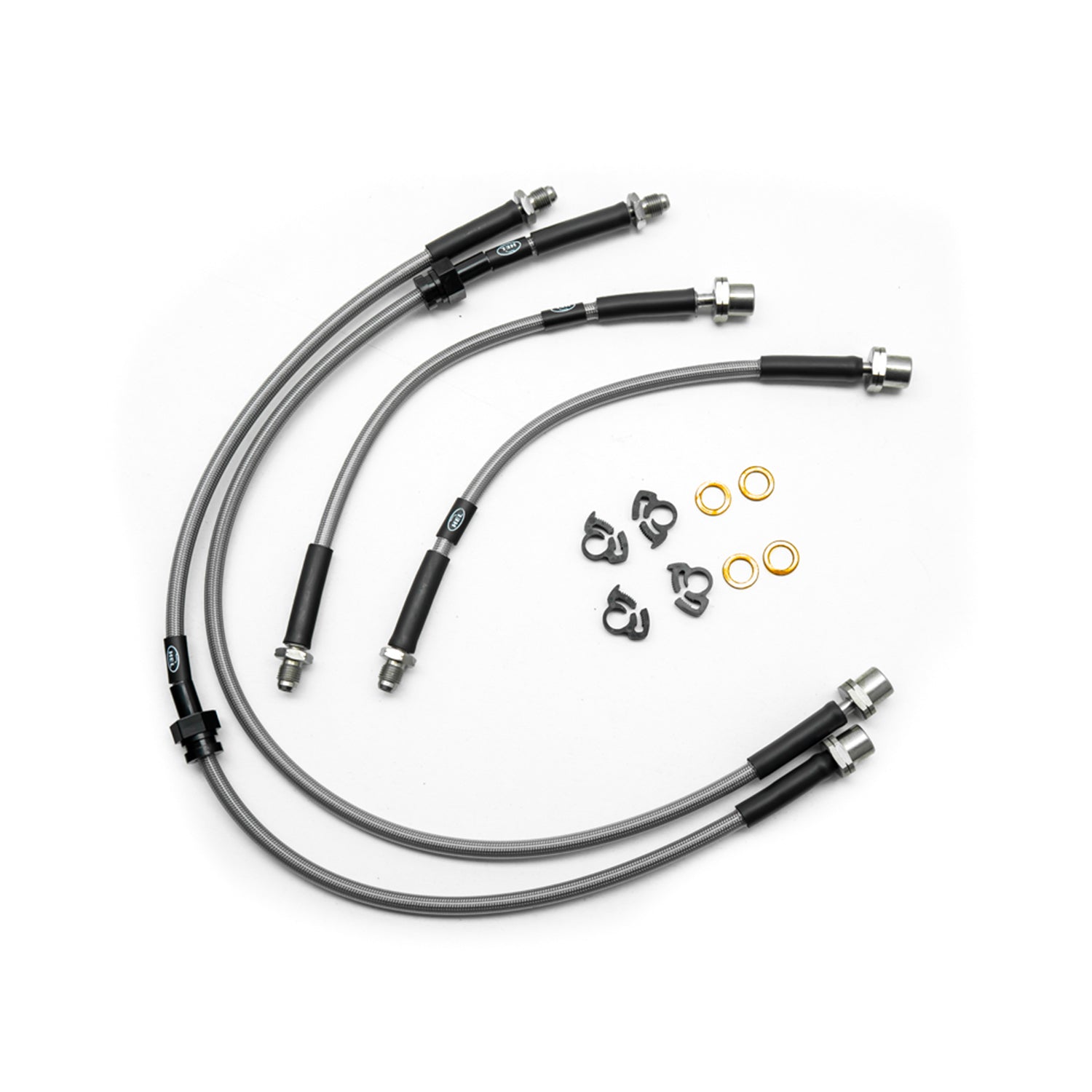

• Stainless steel braided brake lines (front & rear)

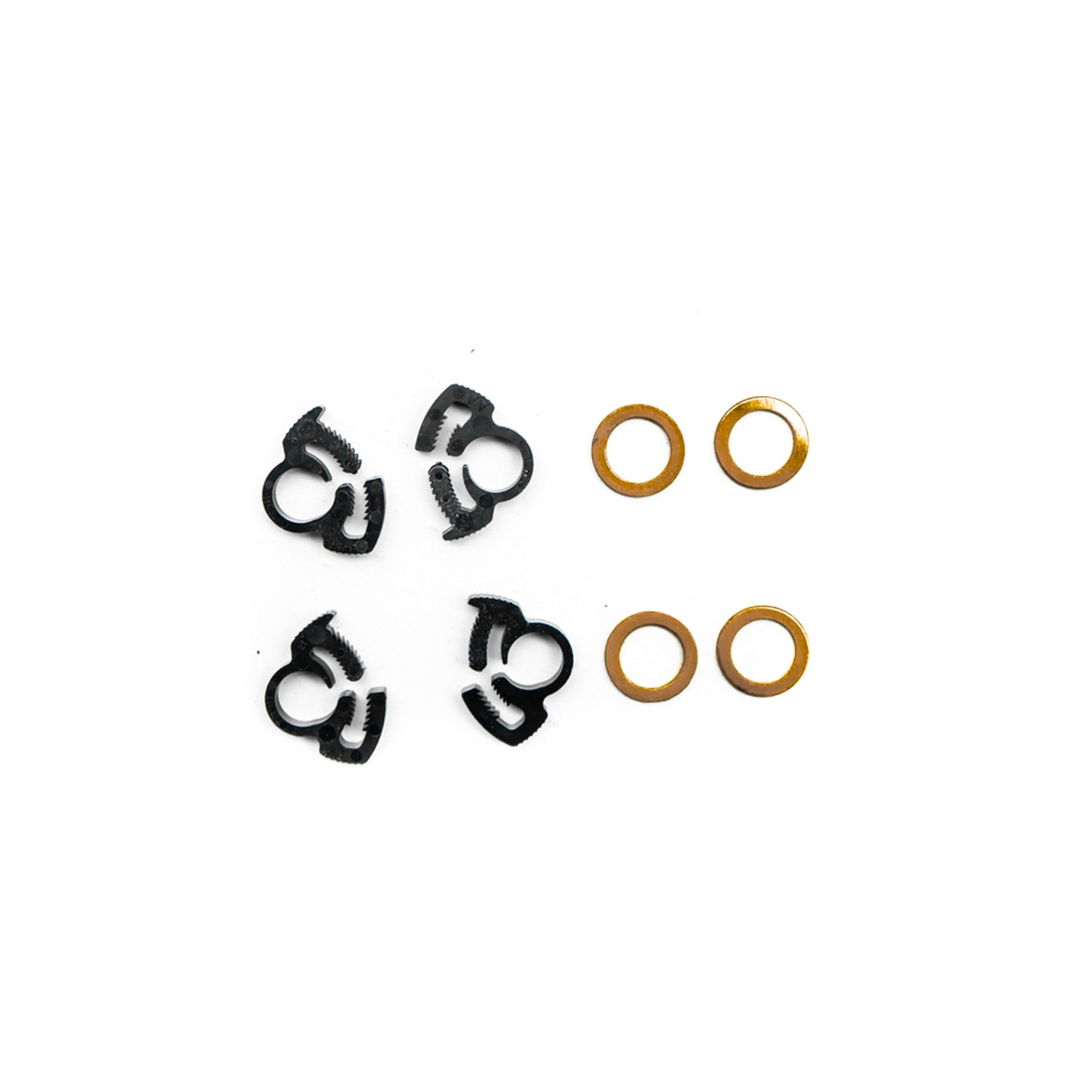

• Stainless steel banjo bolts (if required)
• Copper crush washers (if required)
• Lifetime warranty keyring fob
• Installation leaflet
