HEL BMW E90, E92 & E93 3 Series M Sport Stainless Steel Front & Rear Braided Brake Lines

Upgrade your BMW 3 Series M Sport (E90, E92 & E93) with HEL Performance stainless steel front and rear braided brake lines – engineered to enhance brake response and reliability. By replacing the factory rubber hoses, these high-performance lines eliminate brake fade and sponginess under pressure, providing a more consistent pedal feel in all driving conditions.

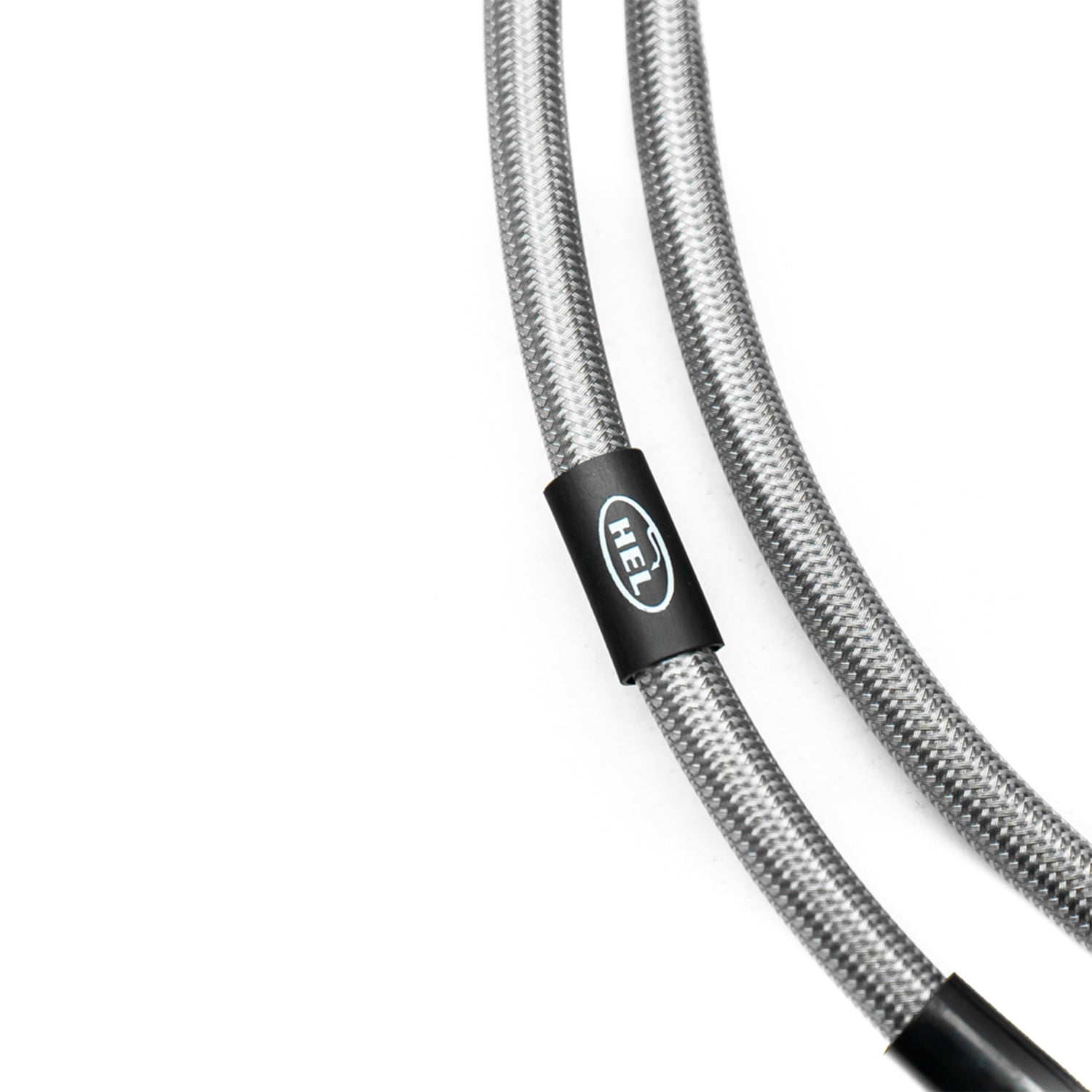

Each HEL line features a PTFE inner hose wrapped in stainless steel braid with a protective PVC cover, finished with precision-machined stainless steel (303/304) fittings. Built to withstand extreme temperatures and pressures, they’re the ideal solution for daily drivers and track enthusiasts alike.

Key Features:

• Designed for BMW E90, E92 & E93 M Sport models
• Improves braking feel and response
• Superior durability under high pressure and heat
• Made in the UK with a HEL Lifetime Warranty

Technical Specifications:

• Line inner material: PTFE
• Line outer material: Stainless steel (303/304) with protective PVC cover
• Fittings material: Stainless steel (303/304)
• Temperature range: -70°C to 260°C (-94°F to 500°F)
• Inside diameter: 3.5mm (0.138")
• Outside diameter: 7.5mm (0.295")
• Maximum working pressure: 290 Bar (4206 PSI)
• Burst pressure: 870 Bar (12618 PSI)
• Minimum bend radius: 38mm (1.496")

What’s in the Box?

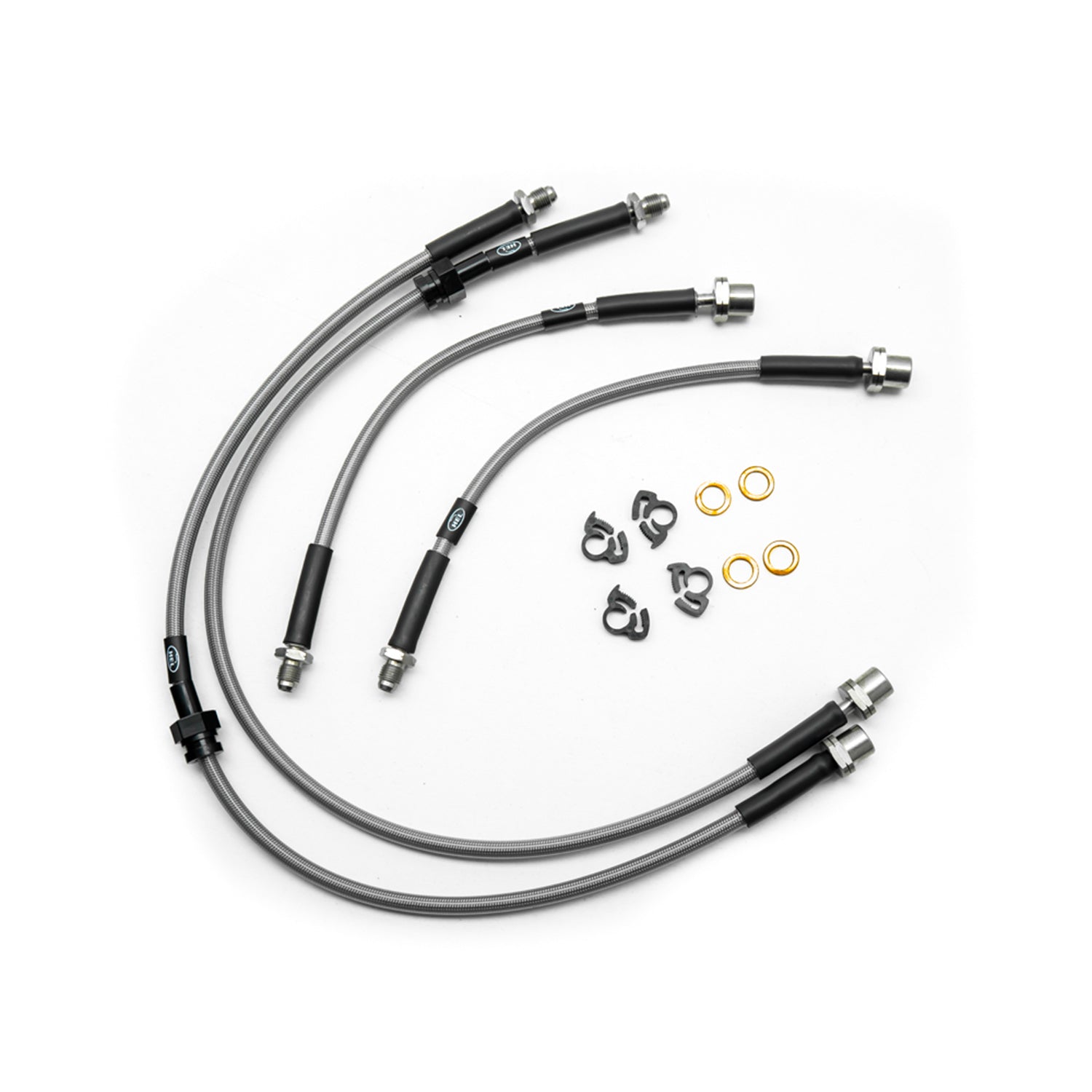

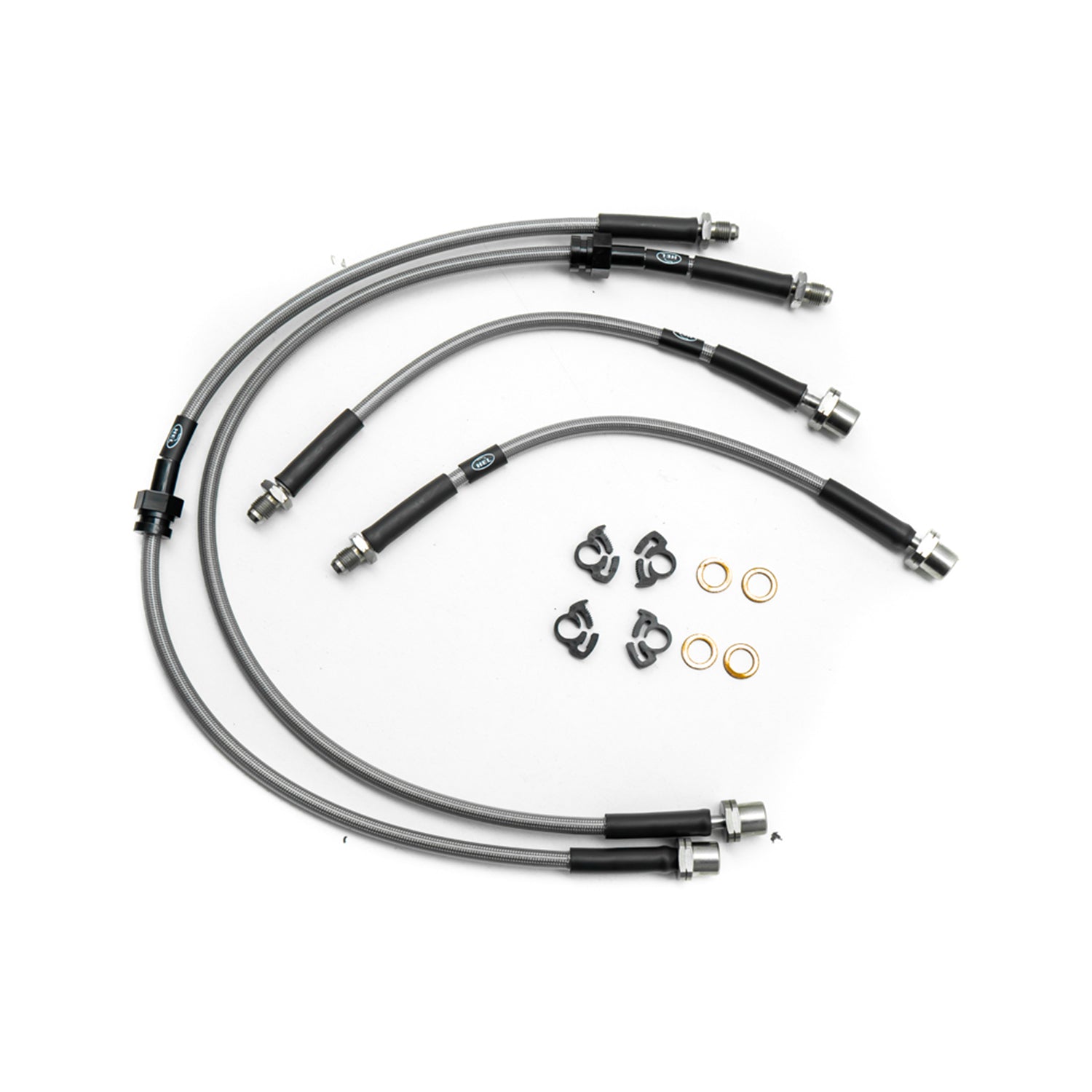

• Stainless steel braided brake lines (front & rear)

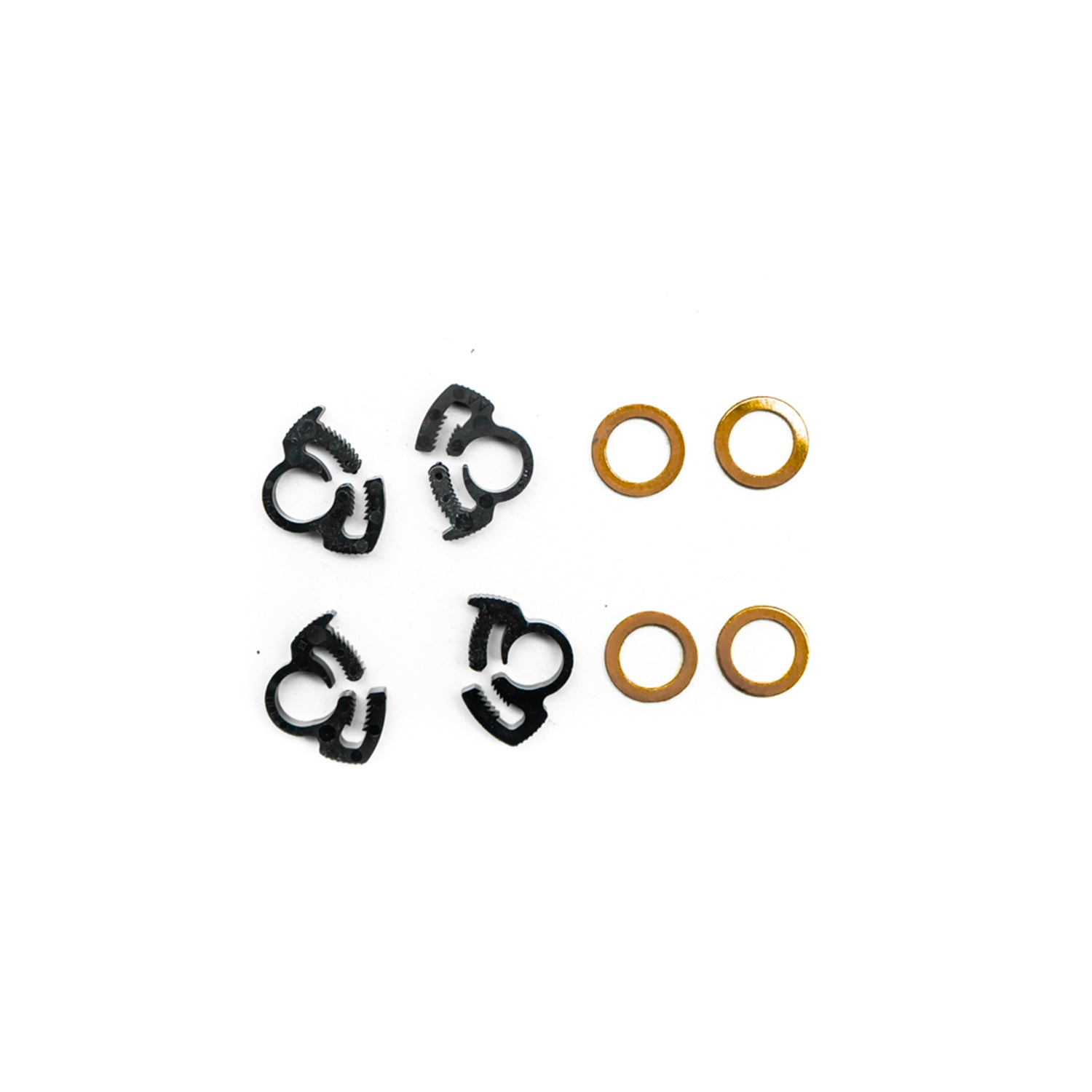

• Stainless steel banjo bolts (if required)
• Copper crush washers (if required)
• Lifetime warranty keyring fob
• Installation leaflet
