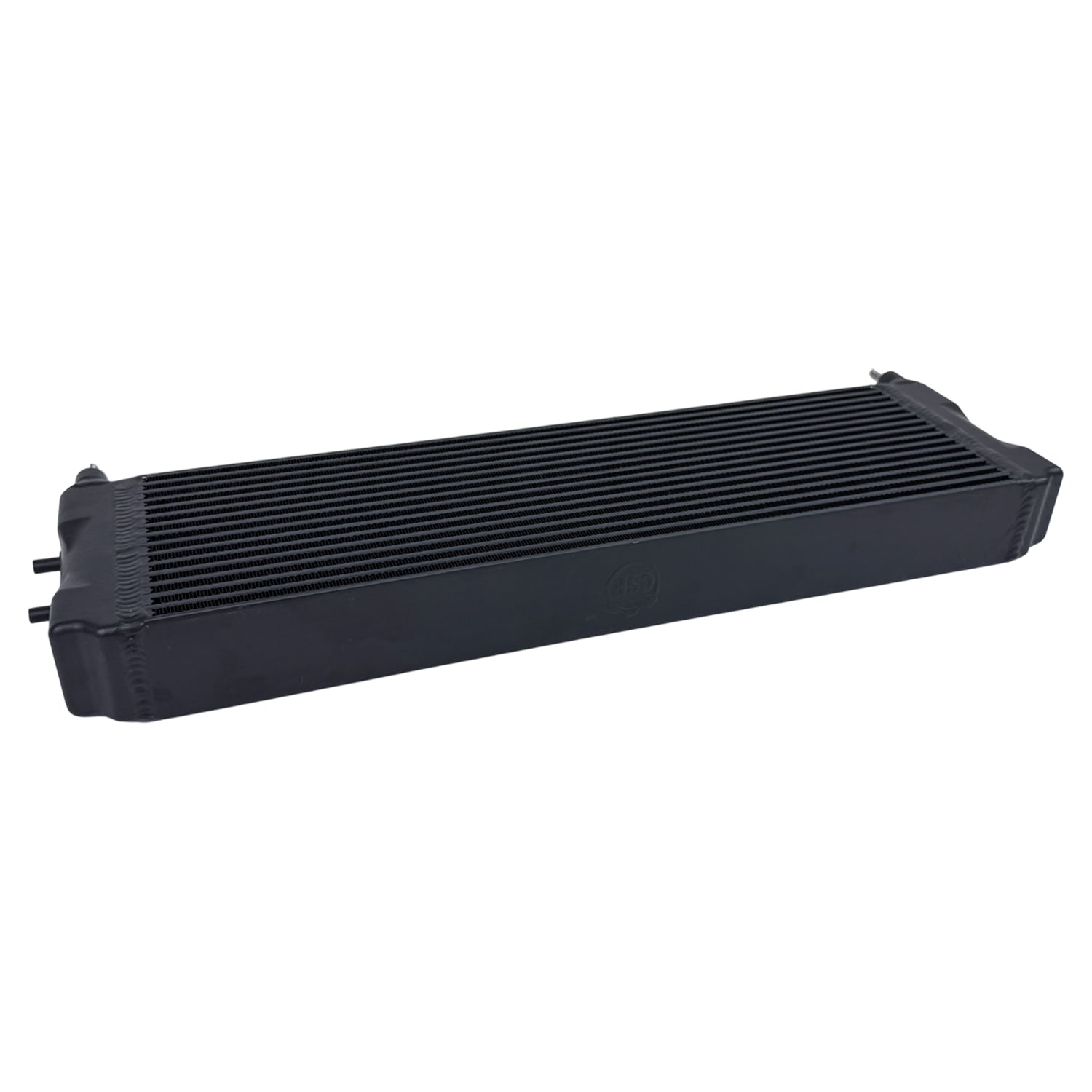

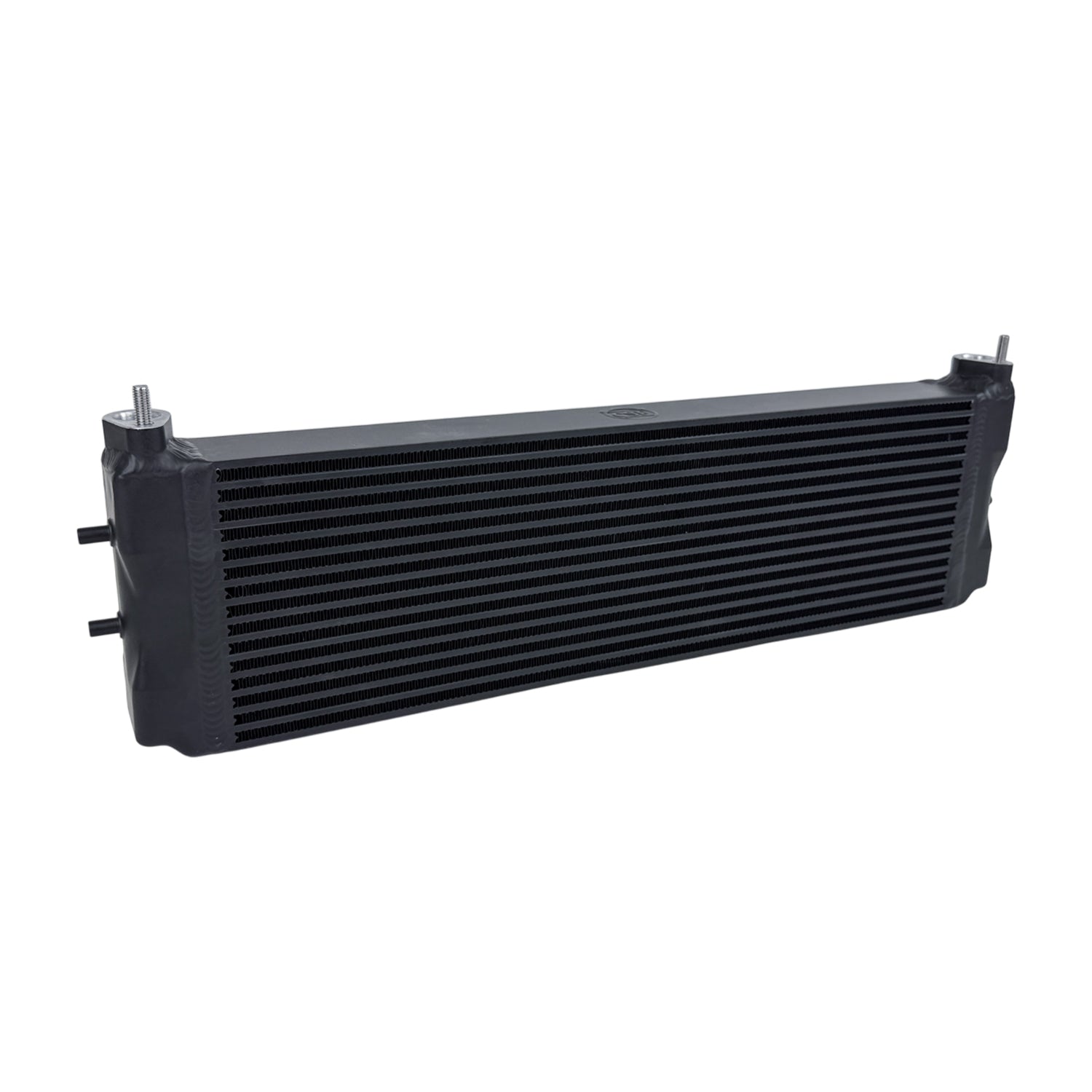

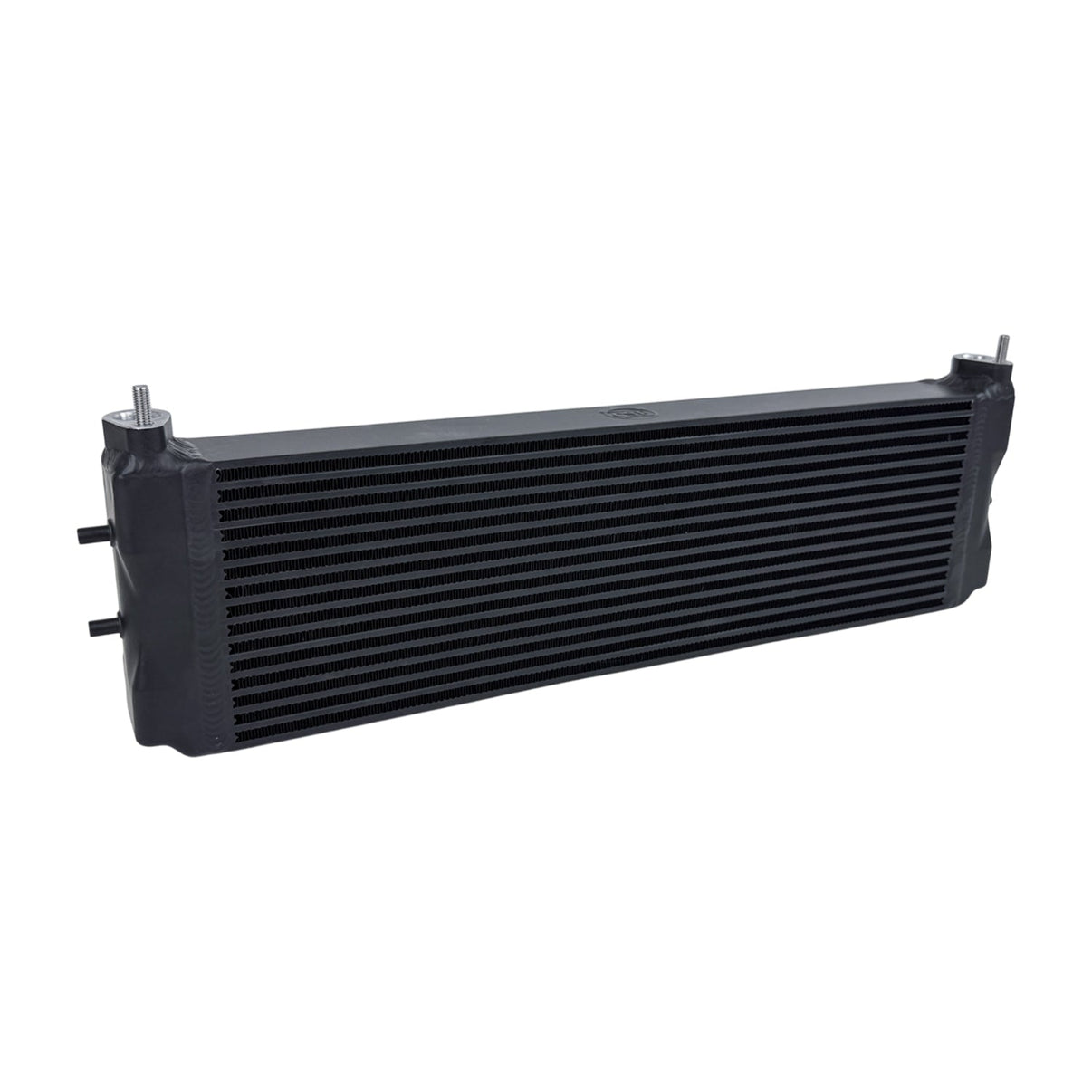

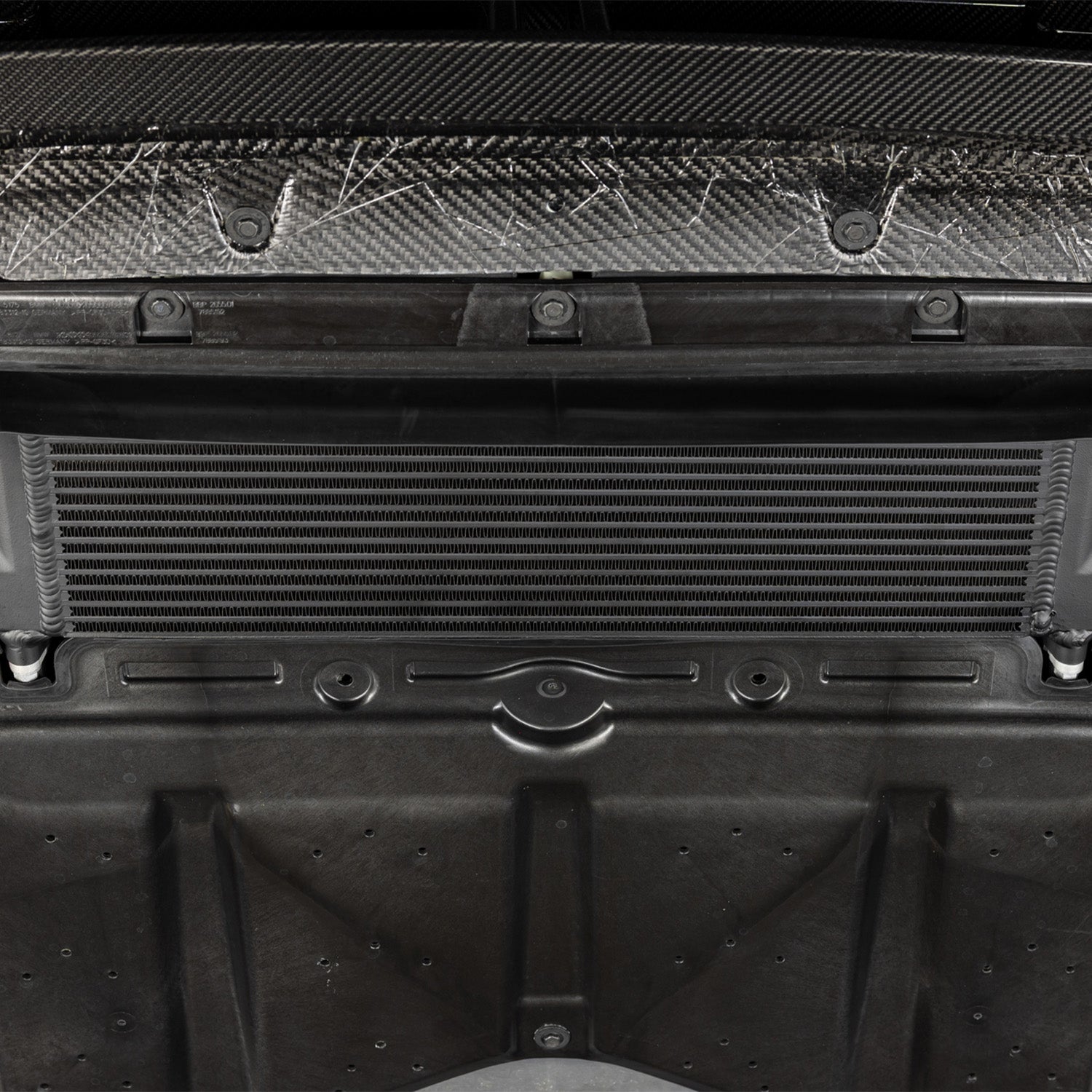

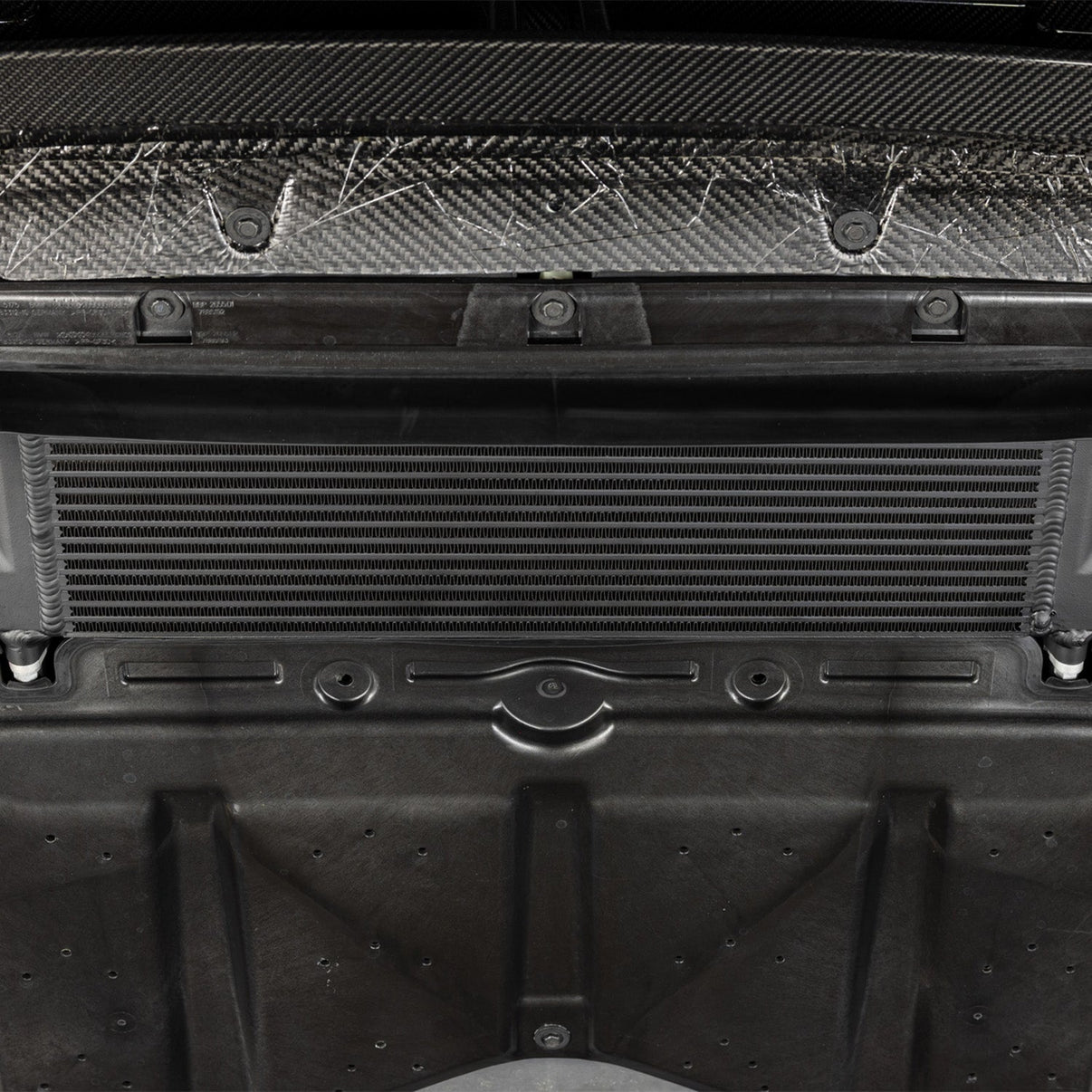

Take your BMW G90/G99 M5, F90 M5, F92 M8, F10 M5 or F12 M6 to the next level of reliability and performance with the CSF High Performance Engine Oil Cooler (8317). Designed for the legendary S63 twin-turbo V8 and proven to also work with the new S68 engine, this upgrade solves one of the biggest weaknesses of the factory system: oil temperature management under extreme load.
BMW’s factory oil cooler struggles when power levels rise or during demanding track sessions, with owners reporting temperatures climbing beyond 240°F (115°C). High oil temps not only sap performance but can also trigger limp mode or, worse, cause long-term engine damage. The CSF #8317 oil cooler was engineered in collaboration with Carbahn to withstand the extra heat from high-output builds, including stroker kits and 1000+ hp applications, while offering improved durability over the vulnerable OEM unit.
Key Engineering Upgrades
33% Larger Core – Increased thickness (60mm vs. OEM 45mm) with three additional rows of cooling, boosting capacity by 0.5 quarts (0.47L).

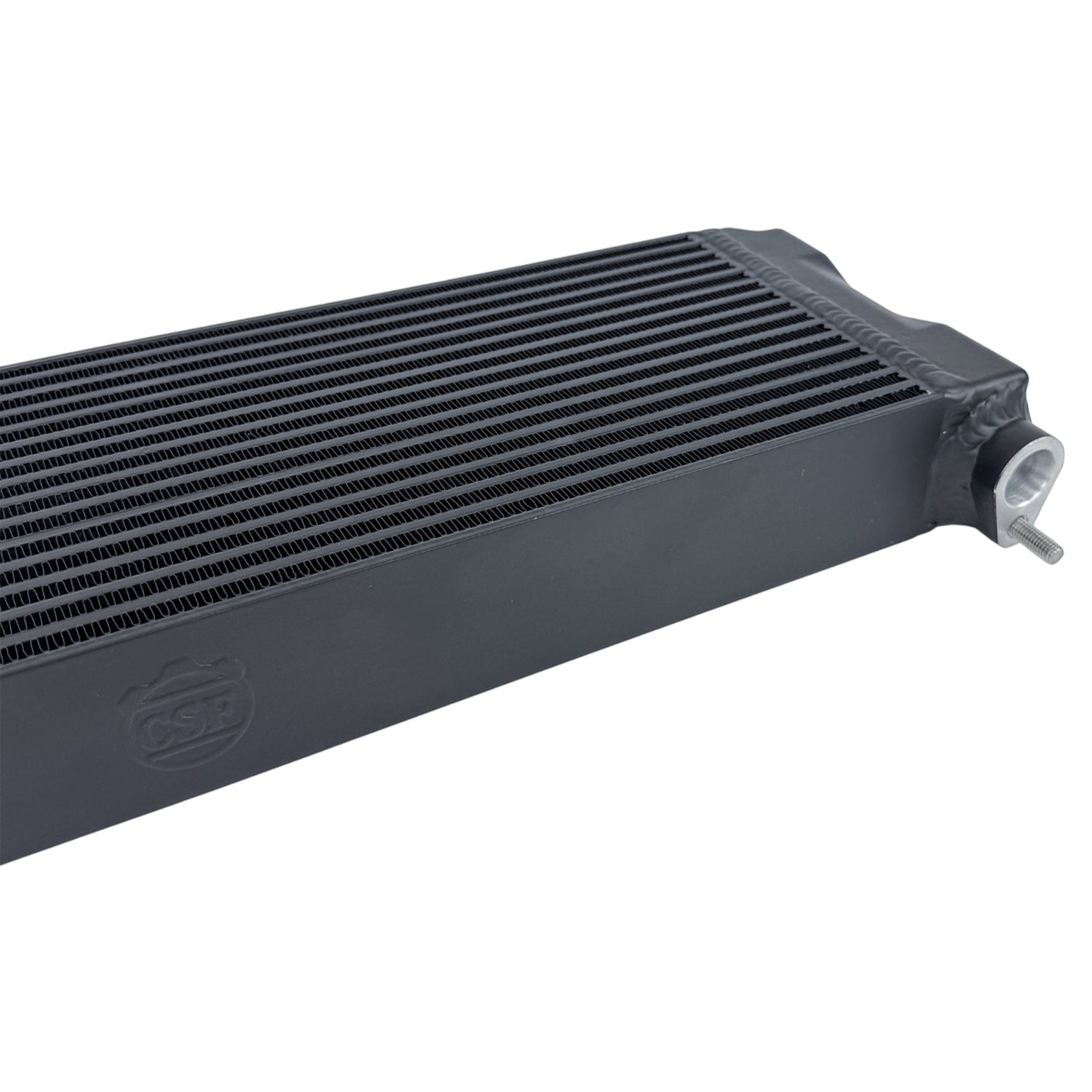

Heavy-Duty Bar & Plate Core – Replaces the fragile OEM tube-and-fin design for maximum strength and improved heat dissipation.

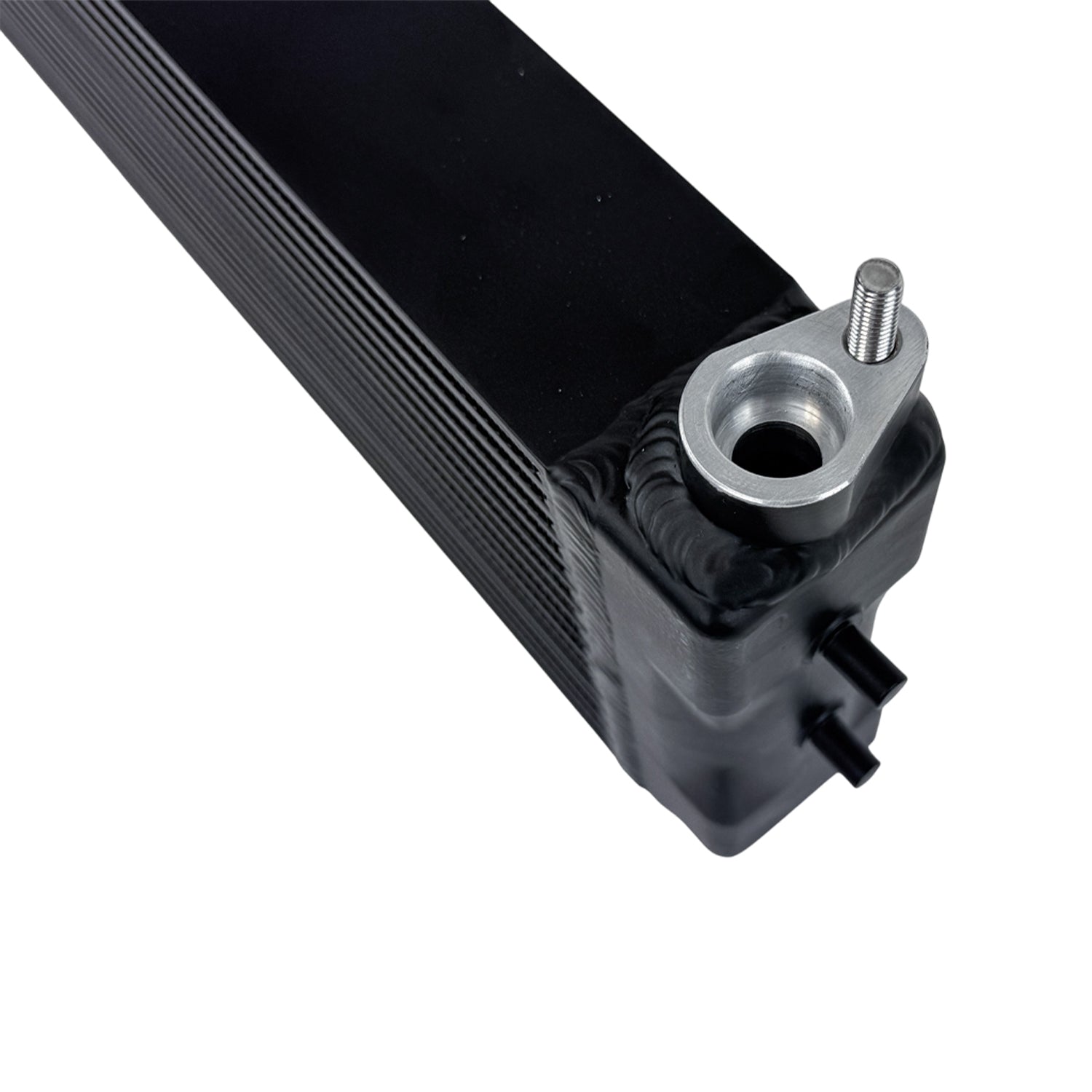

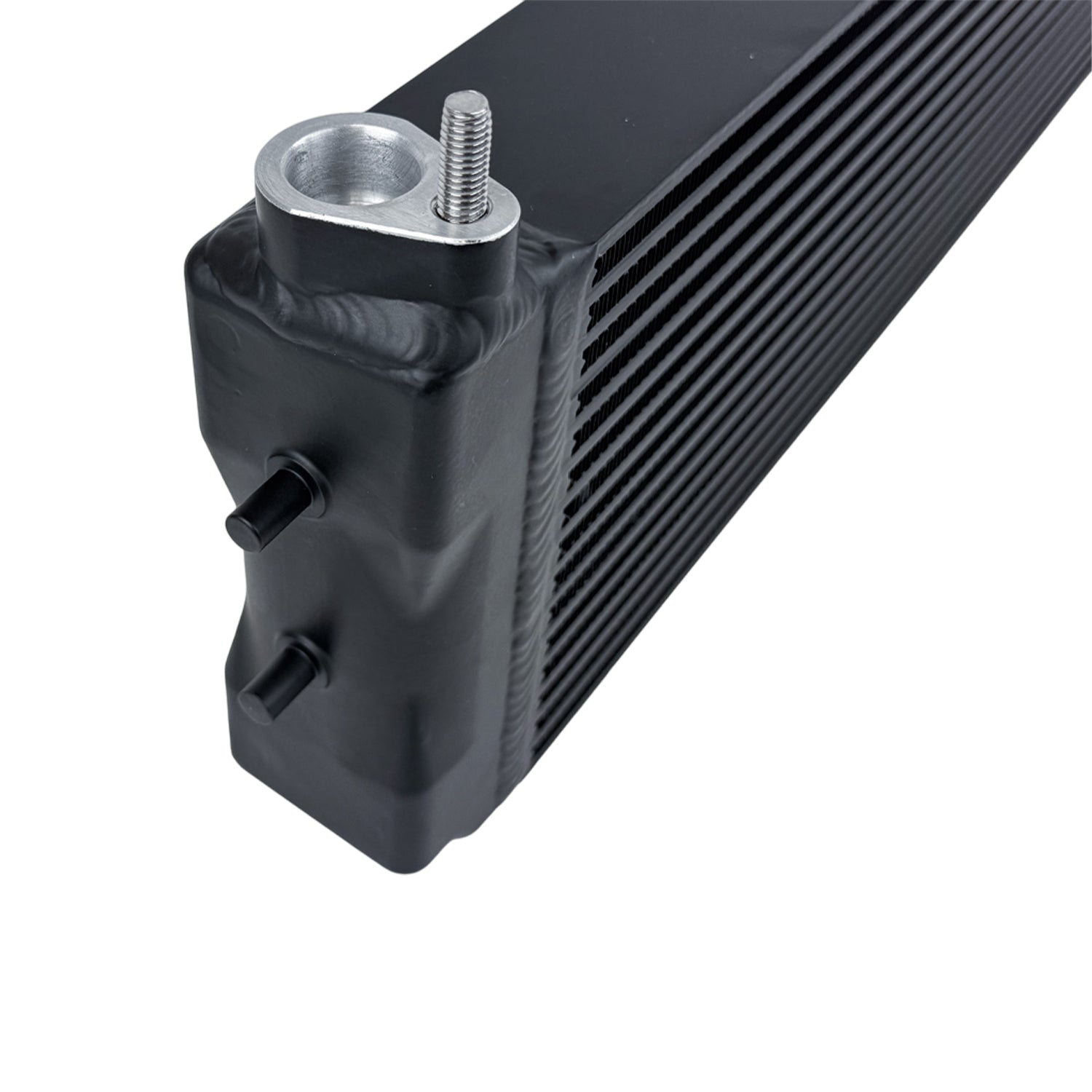

CNC-Machined Connection Blocks – TIG-welded for extreme durability under high boost and track abuse.
TIG-Welded End Tanks – Stronger and more reliable than OEM brazed construction, minimising the risk of leaks.
Optimised Cooling Design – 14 cooling tubes and 15 fin rows (vs. OEM’s 11 tubes and 12 rows) for greater thermal efficiency.
CSF vs. OEM at a Glance
Feature
CSF
OEM
Cooling Tubes
14
11
Cooling Fin Rows
15
12
Fin Height/Width
6.5mm
8mm
Core Thickness
60mm
45mm
Core Design
Bar & Plate
Tube & Fin
Construction
100% TIG Welded
Brazed
Why Upgrade?
Whether you’re running stock turbos, a mild tune, or pushing beyond 1000hp, excessive oil temps are the enemy of both performance and reliability. The CSF 8317 oil cooler not only keeps your S63/S68 running cooler but also provides the strength to withstand impacts and front-end scrapes that often damage the OEM unit. It’s a smart preventative upgrade for daily drivers, weekend builds, and full track weapons alike.
