Precision Raceworks BMW B58 Engine Port Injection Kit (F Series & G Series)

The Precision Raceworks B58 Port Injection kit with flex fuel compatibility is a necessity to safely and sufficiently support the power levels of anyone needing additional fueling. This kit is capable of providing supplemental fueling to all BMWs equipped with the B58 engine (Gen1 and Gen2) (see fitment guide for full details).

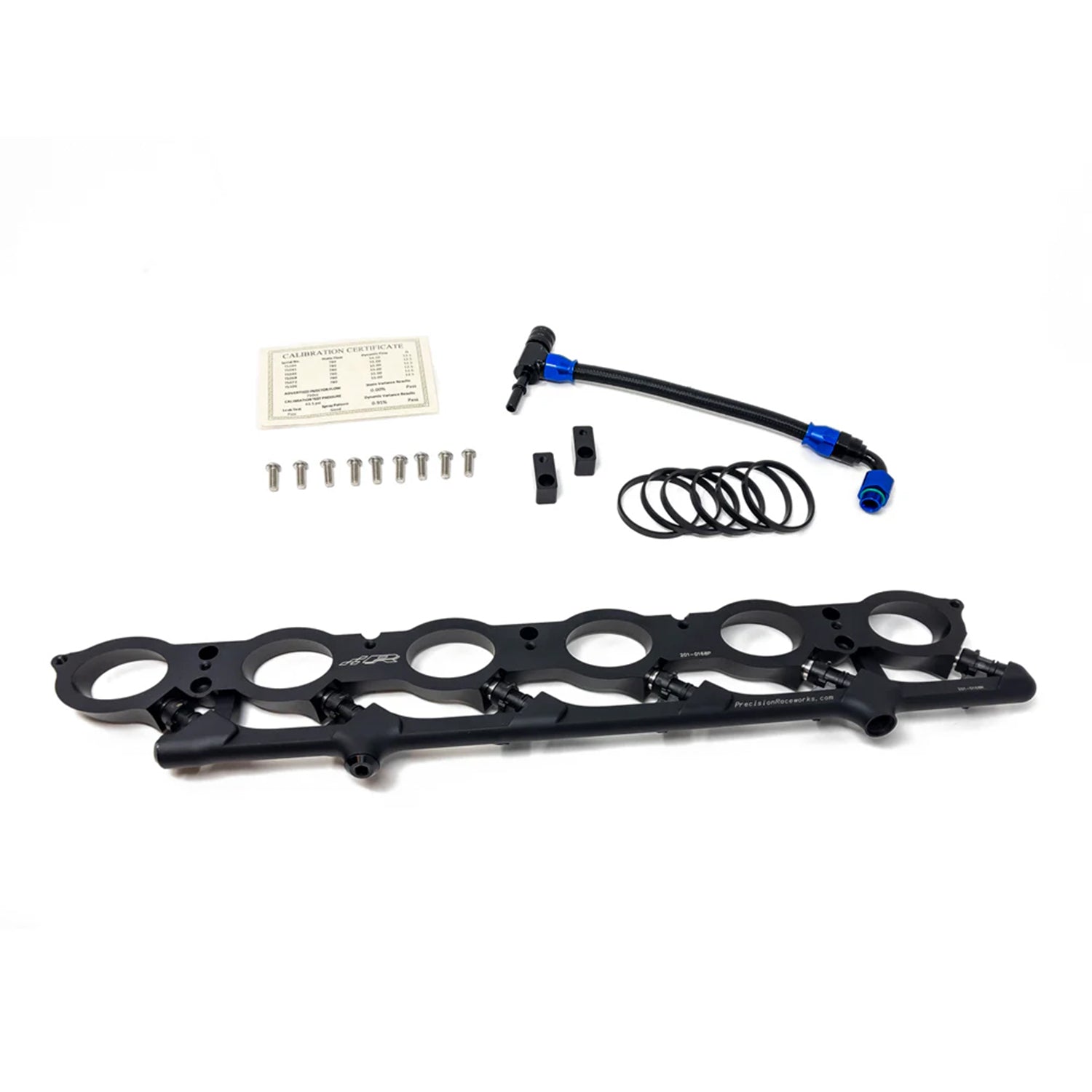

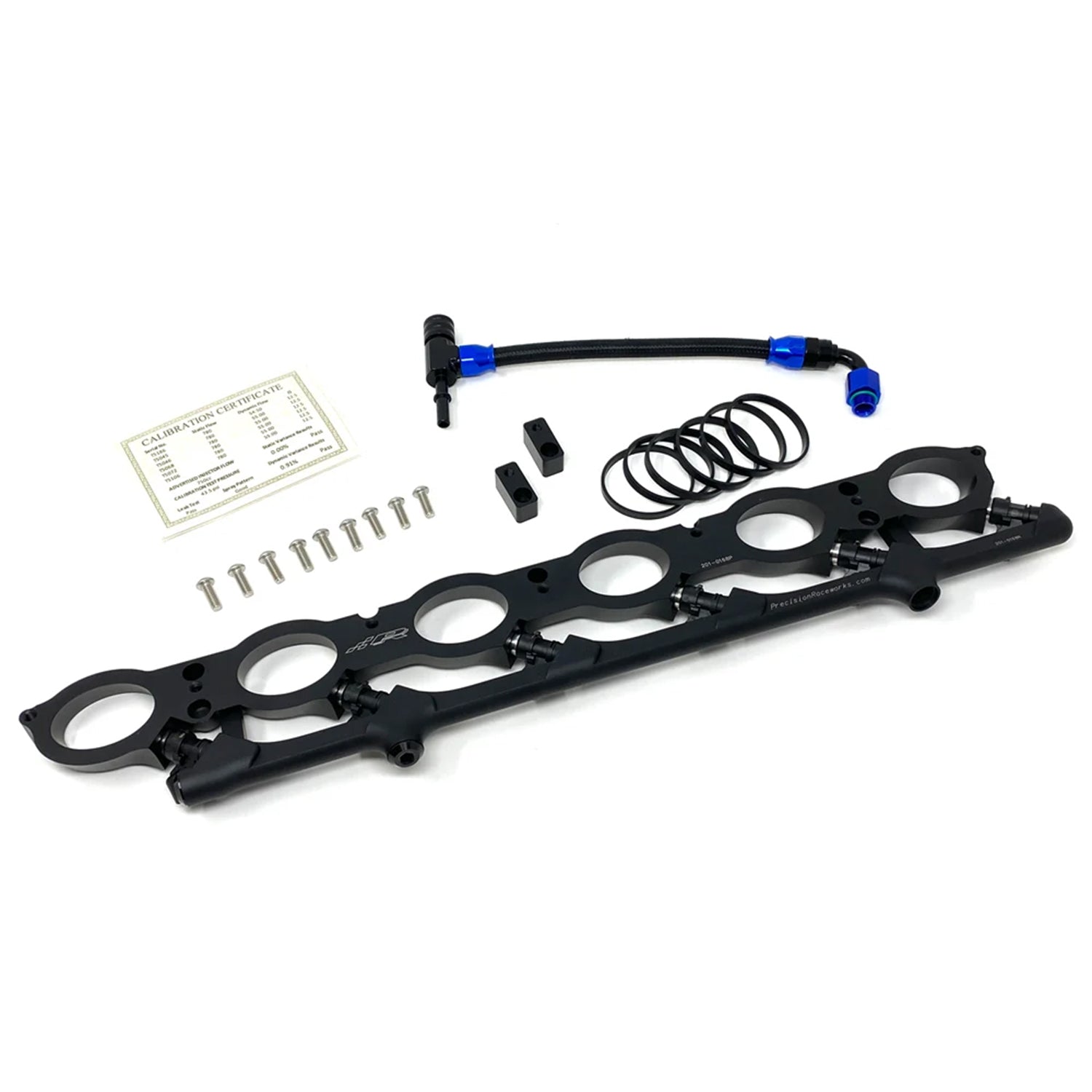

The complete kit integrates seamlessly into your car like it left from the factory with it installed; you can barely even see the kit once the car is assembled! This kit includes everything needed to add multi-port injection and is 100% e85 compliant. Optional Injector Dynamics high flow fuel injectors are available.

Don’t be tricked into thinking all port injection kits are equal, the Precision Raceworks is the only port injection kit currently where all 6 injectors have even fuel distribution for each cylinder. Additionally, this kit features 750cc* injectors standard (this flow rate is based on industry injector flow test pressure of 43.5psi) at 72psi these injectors flow 1000cc. This means the Precision Raceworks kit is capable of supporting builds from 400whp up to 1,000whp out of the box.

Specifications & Features:

• Weight: 3.5lbs
• Engine Compatibility: All B58 Gen 1 engines (see fitment guide for full details)
• Injector Dynamics high flow fuel injector options available
• Fuel Compatibility: All known fuels including full E85 compatibility
• Flow Matched: 2% or better (250% more accurate than off the shelf injectors)
• Connection Type: EV6 (Called US Car Connector) works with AIC and JB4 Controller
• Hardware included: Yes full stainless hardware included
• Gasket Type: OEM Spec manifold gaskets (commonly found in BMW N54 applications)
• Fuel Distribution Pattern: Diagonal equal distribution across all cylinders
• Fuel Line: Smooth bore PTFE with stainless braid and nylon braid safe for all fuel types

Compatible Vehicles:

• Bmw 340i 2015 to 2019
• Bmw 440i 2016 to 2021
• Bmw 540i 2017 to 2023
• Bmw 640i 2017 to 2023
• Bmw 740i 2016 to 2023
• Bmw 740li 2016 to 2023
• Bmw 840i 2019 to 2023
• Bmw M140i 2016 to 2019
• Bmw M240i 2016 to 2021
• Bmw M340i 2019 to 2023
• Bmw M440i 2020 to 2023
• Bmw X3 M40i 2017 to 2021
• Bmw X4 M40i 2018 to 2021
• Bmw X5 Sdrive40i 2018 to 2021
• Bmw X5 Xdrive40i 2018 to 2021
• Bmw X6 Xdrive40i 2020 to 2023
• Bmw X7 Xdrive40i 2018 to 2023
• Bmw Z4 M40i 2018 to 2023
• Morgan Plus Six 2020 to 2023
• Toyota Supra 2020 to 2023

(Aftermarket 2 piece charge pipe required)

*Actual flow rate may vary, as advertised flow rate is common average.
