HEL Toyota GR Supra A90 & A91 Stainless Steel Front & Rear Braided Brake Lines

Enhance the braking performance and reliability of your Toyota GR Supra A90 or A91 with this high-spec HEL Performance stainless steel braided brake line kit. Designed to improve pedal feel and eliminate the spongy sensation associated with factory rubber hoses, this upgrade ensures consistent braking response—on the road or on the track.

Each line features a durable PTFE inner hose, stainless steel (303/304) outer braid, and a protective PVC cover for maximum strength and heat resistance. Precision-engineered stainless steel fittings ensure a secure, corrosion-resistant connection. Capable of withstanding extreme pressures and temperatures, these lines are built for performance and longevity—backed by HEL's renowned lifetime warranty.

Key Features:

• Direct fit for Toyota GR Supra A90 & A91 (2019+)
• Includes both front and rear brake lines
• Improves pedal feel and brake response
• Stainless steel (303/304) fittings for strength and durability
• PTFE inner hose and stainless steel braided outer with protective PVC sleeve
• Made in the UK to stringent manufacturing standards
• HEL Lifetime Warranty

Technical Specifications:

• Line inner material: PTFE

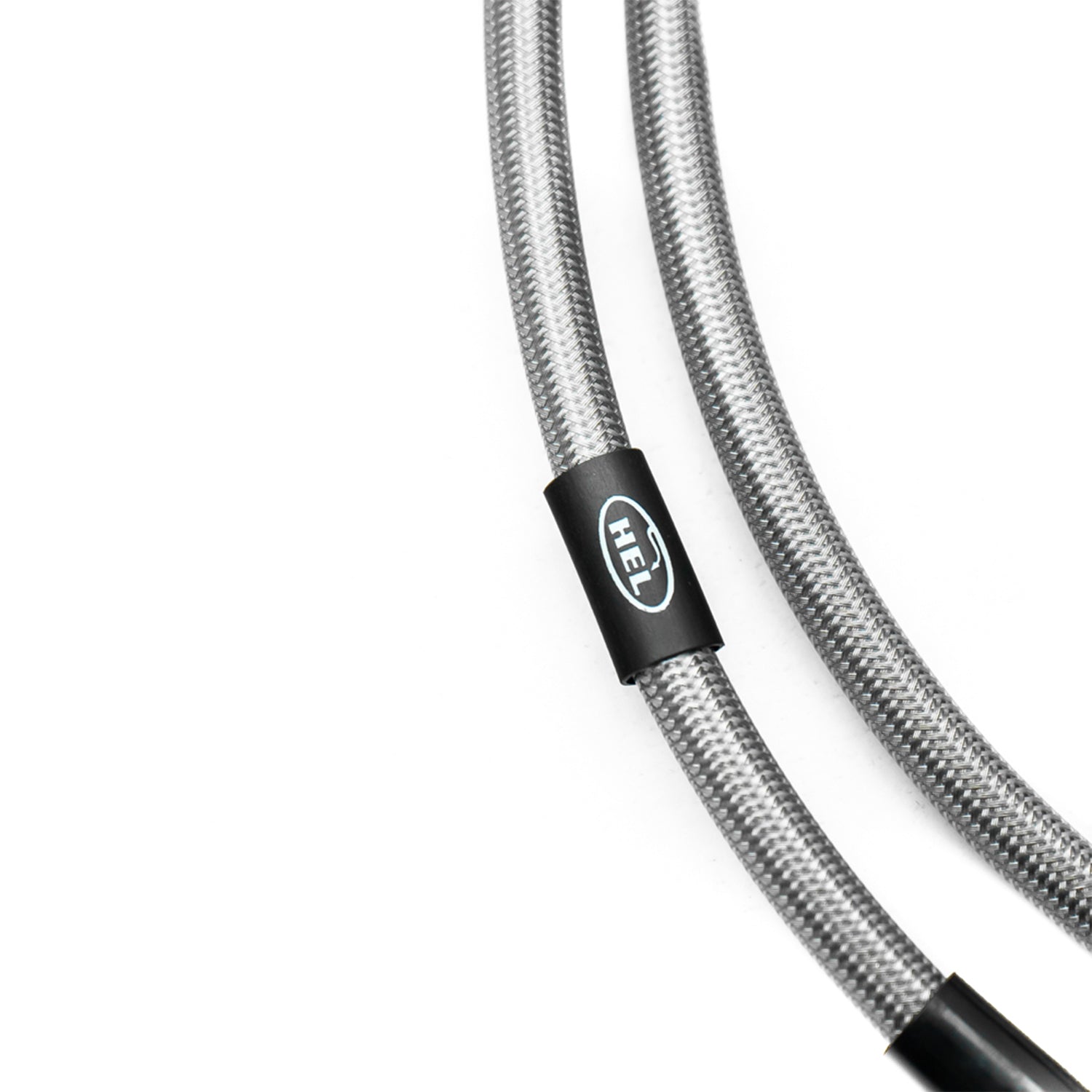

• Line outer material: Stainless steel (303/304) with PVC cover
• Fittings material: Stainless steel (303/304)
• Temperature range: -70°C to 260°C (-94°F to 500°F)
• Inside diameter: 3.5mm (0.138")
• Outside diameter: 7.5mm (0.295")
• Maximum working pressure: 290 Bar (4206 PSI)
• Burst pressure: 870 Bar (12618 PSI)
• Minimum bend radius: 38mm (1.496")

What's In The Box:

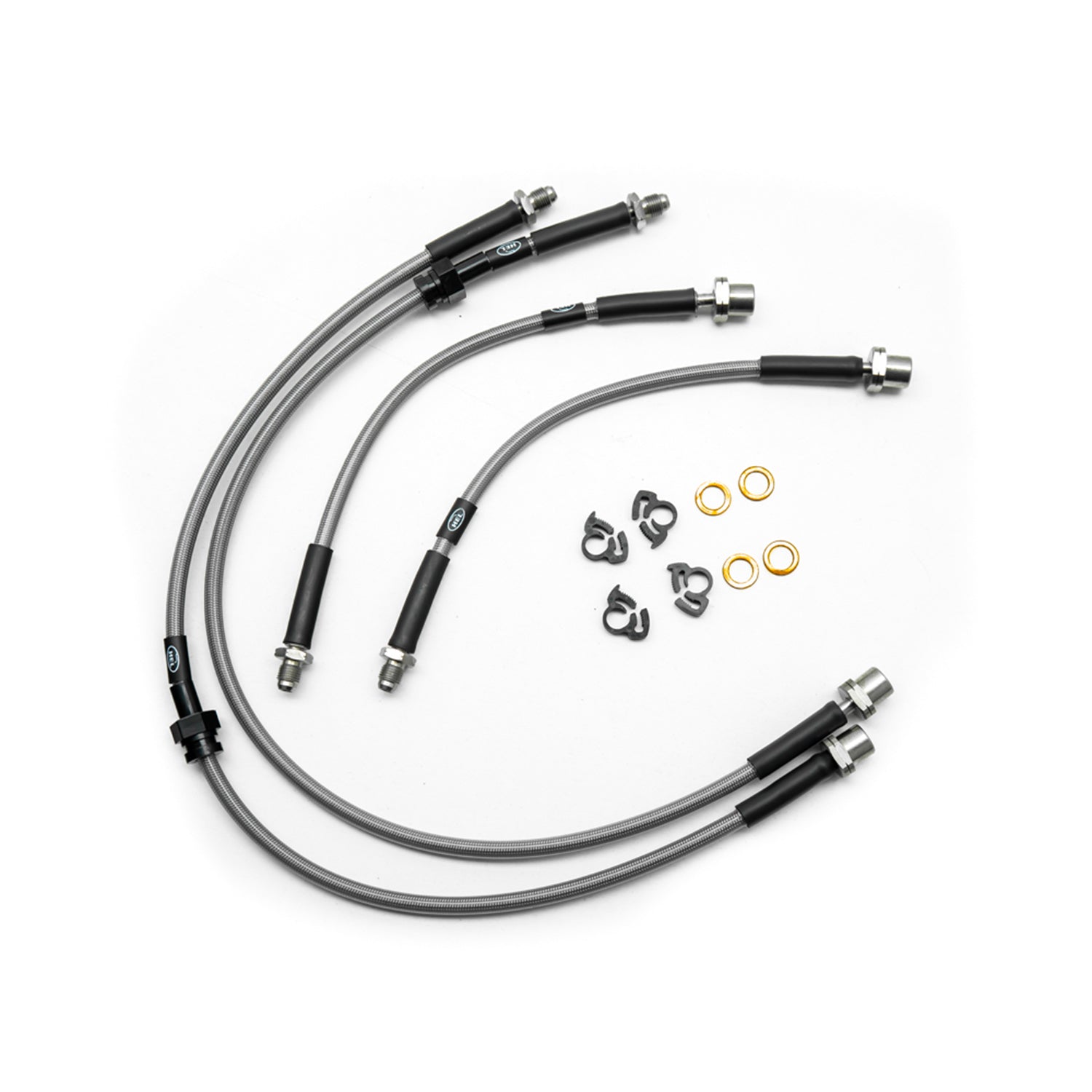

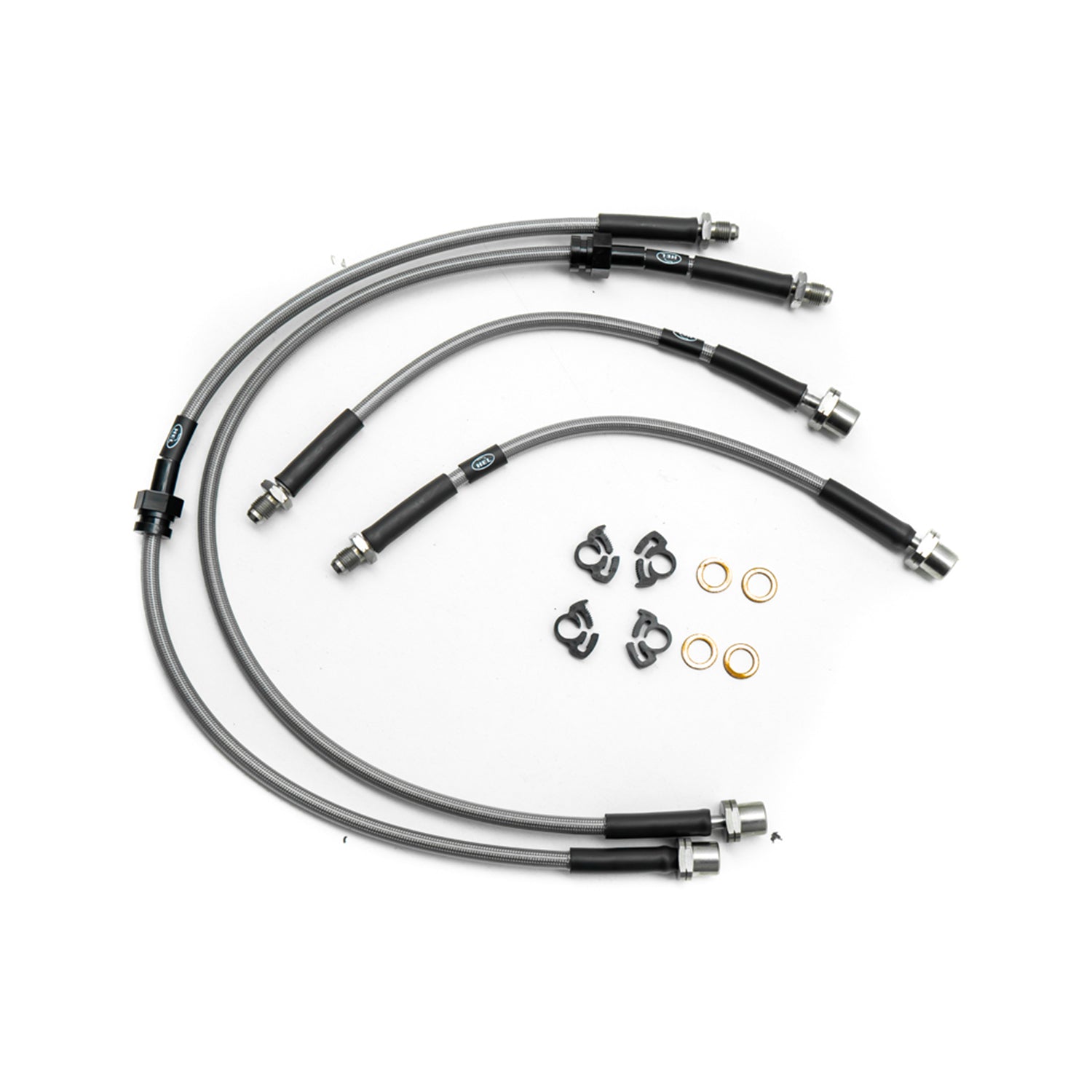

• Stainless steel braided brake lines (front & rear)
• Natural plain stainless steel banjo bolts (if the fittings require them)

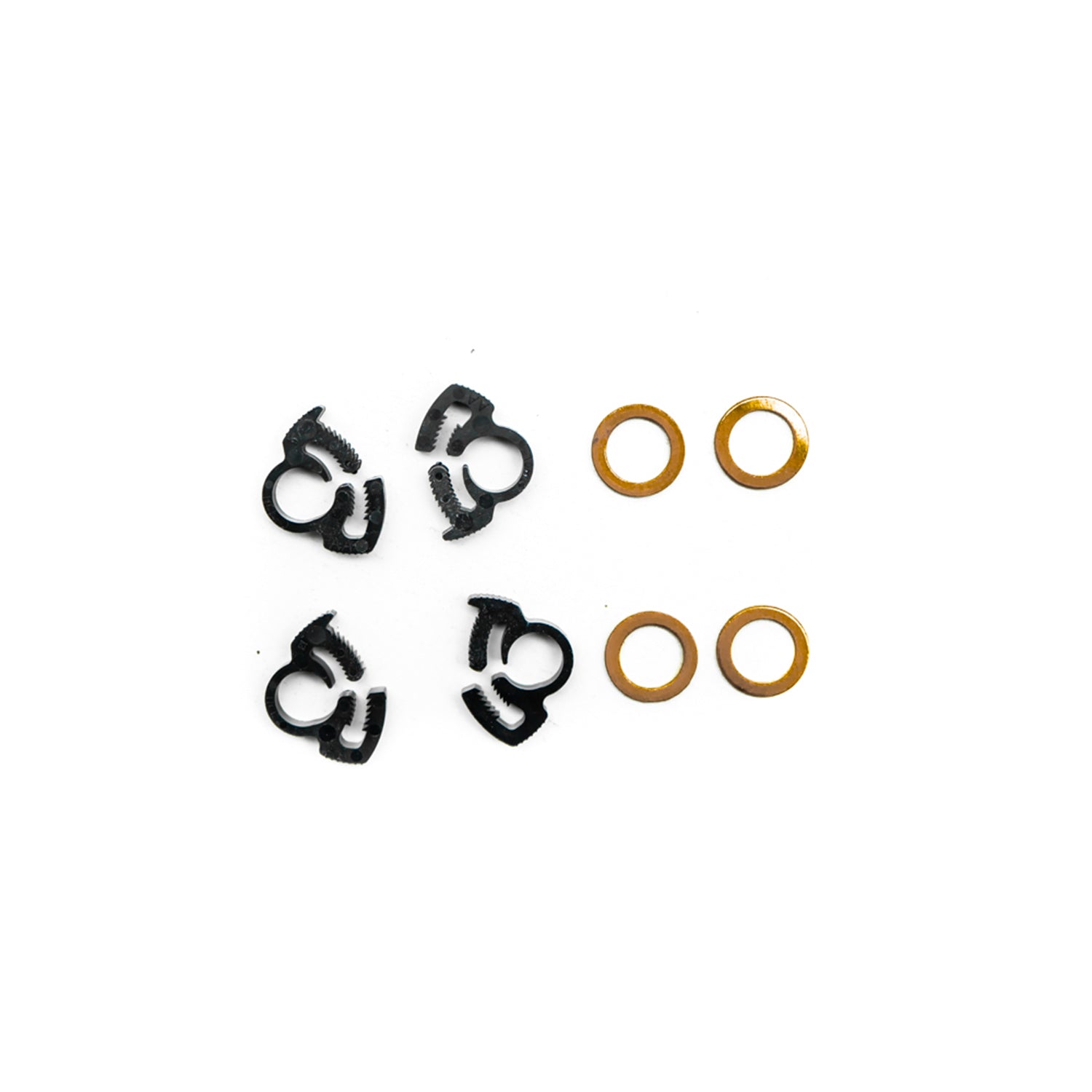

• Copper crush washers (if the fittings require them)
• Lifetime warranty keyring fob
• Installation leaflet
